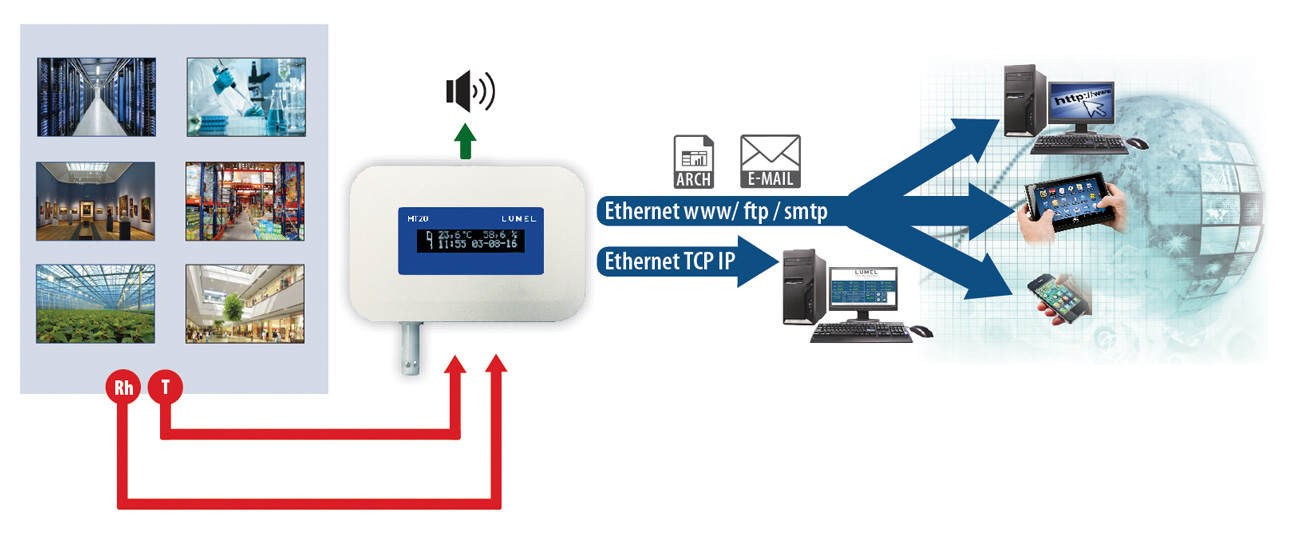

The data captured by HT20 is stored in the internal memory and then sent digitally to the user (by the Ethernet).
In case of an emergency situation, the device immediately sends appropriate warnings via emails or via a website.
An additional advantage of HT20 is the possibility that it can be powered over the Ethernet. This feature is available in versions that are equipped with the Power over Ethernet system (PoE).
HOW DOES HT20 WORK IN CASE THE PRE-SET PARAMETERS ARE EXCEEDED?
The HT20 allows up to two defined warnings. Whenever the pre-set parameters are exceeded, the HT20 will immediately signal this via:
- emails,
- messages on a dedicated website,
- special symbols on the display,
- audible alerts.
ETHERNET INTERFACE AND ITS FUNCTIONALITY
The HT20 is equipped with the Ethernet interface enabling its connection to the local or global network (either LAN or WAN).

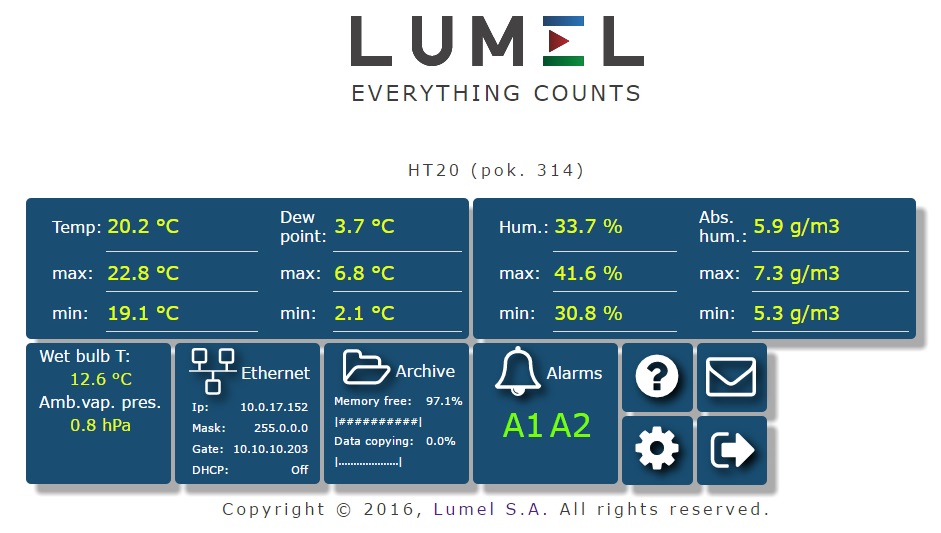

Thanks to the user-friendly and intuitive www server, you will always have access to the information regarding:
- current measurement values,
- device status.
- configure it
- read the serial number, manufacturing code, software version and bootloader version.
The DHCP protocol provides automatic configuration of the monitor in the computer network, whereas the SMTP protocol is responsible for sending the warnings via emails.

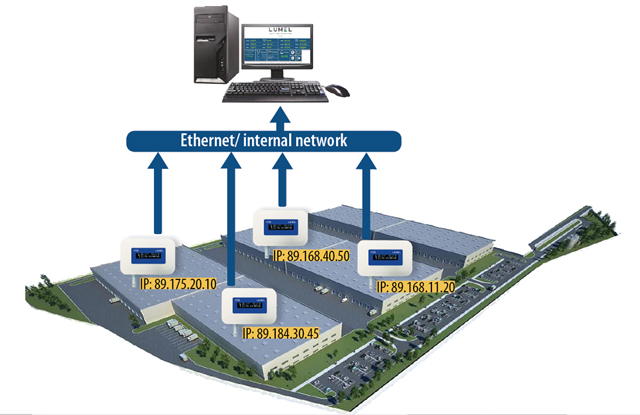

The HT20 monitor can also work in more extensive systems where the communication protocol Modbus Slave TCP/IP provides a smooth and reliable reading of all current measurement data.
MEASUREMENTS ARCHIVE
Thanks to the dedicated website, you can also check the archived data using a smartphone, tablet or a PC. There is no need to be worried about insufficient memory on the device; the HT20 has an 8GB internal file system memory where the data form the internal memory buffer (4GB) is automatically recorded as files. The memory has a form of a circular buffer and after the storage is full, the oldest files are overwritten. The internal archive can be read, copied and/or deleted.
See how HT20 web works (log in as a guest).
