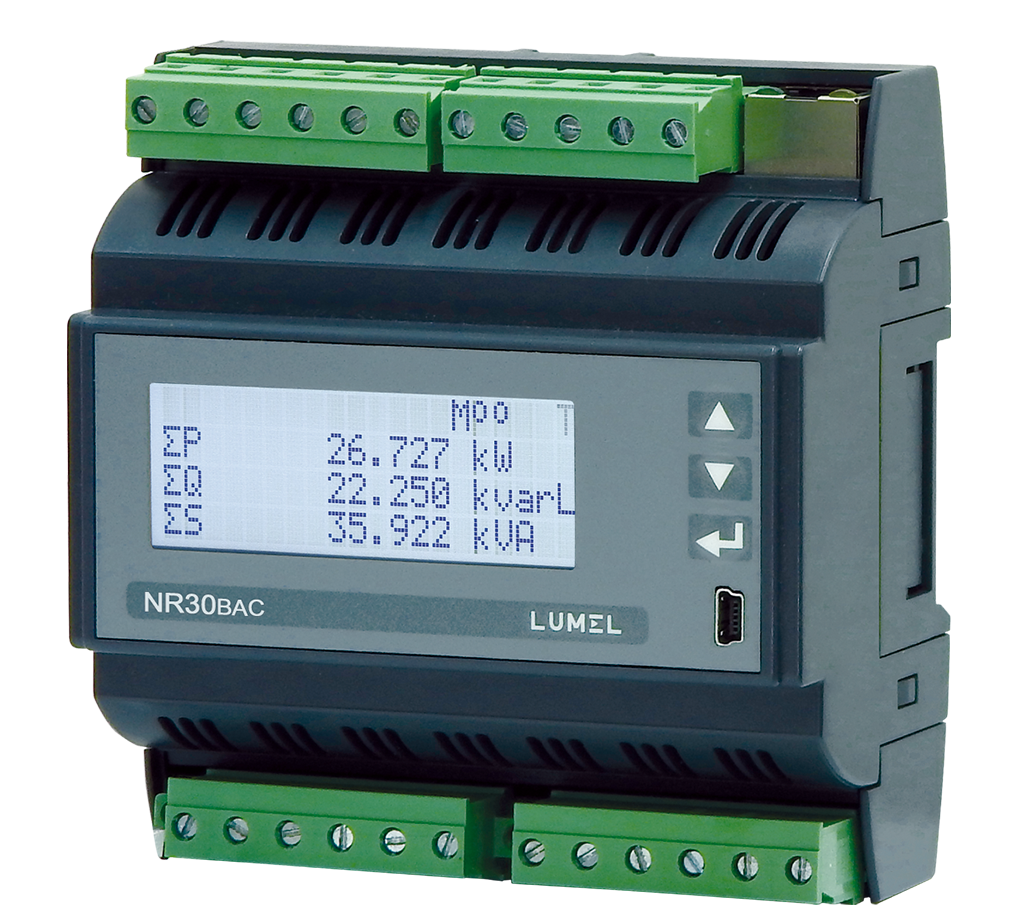

- Measurement and recording of 54 power network parameters in 1-phase 2-wire or 3-phase 3 or 4-wire balanced and unbalanced systems.
- Harmonics up to 51st for current and voltage
- Backlight LCD screen, fully configurable by a user
- 22 pages, 3 parameters in each
- 1 page with harmonics presentation
- Indications include the values of programmed ratios
- Memory of minimum and maximum values.
- 2 configurable alarm outputs.
- Optional: with additional module of analog outputs - S4AO type (4 current or voltage outputs)
- RS-485 digital output - MODBUS protocole

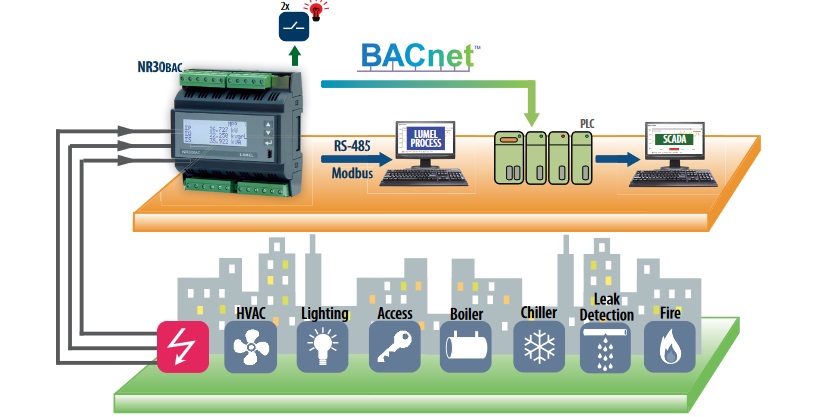

- Modern and user-friendly BACnet/ IP protocole
- Wide range of voltage supply
- 85..253 V a.c. or 90..300 V d.c.
- 20..40 V a.c or 20..60 V d.c.
- Programming of parameters using free eCon software.
- Battery backup RTC.
- Modern design allows for installation of the meter in modular switchgear in accordance with EN 62208 (meter has a width of 6 modules) on 35 mm rail,
- External dimensions: 105 x 110 x 60mm.
