- Electric isolation for standard DC signals
- Programmable input range
- Two programmable outputs
- Accuracy class: < ± 0,2%
- Solves grounding problem in Meszhed Signac networks
- Response time < 50 ms
- High electric isolation between input and output 2.3kV
- Electric isolation between power supply and other circuits 3 kV
- High auxiliary supply: 60…300 V a.c./d.c., 40...400 Hz
- Low auxiliary supply: 20…40 V a.c., 40...400 Hz, 20...60 V d.c.
- Enclosure protection: IP40 front, IP20 terminals.
- External dimensions: 22.5 x 65.5 x 106.5 mm

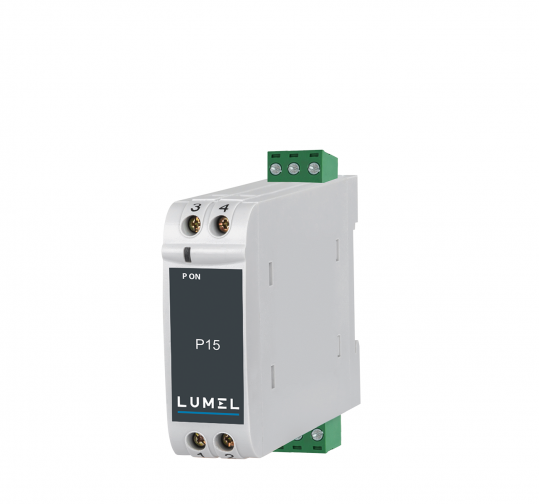

DC transducer/separator
P15
P15 splitter ensures galvanic isolation between input, 2 outputs and the supply circuit. The transducer meets all the requirements concerning EMC according to PN-EN 61010 standard.
