- Universal measuring input (thermocouples, resistance thermometers or analog signals),
- Input: logic and auxiliary analog input,
- Output: relay, transistor of OC type, continuous or binary for SSR control,
- Control algorithm:
- On/off with histeresis,
- 15 programs with 15 segments in each,
- valve control (step-by-step control),

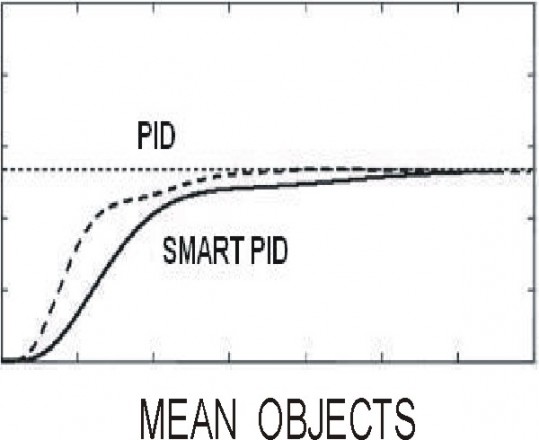

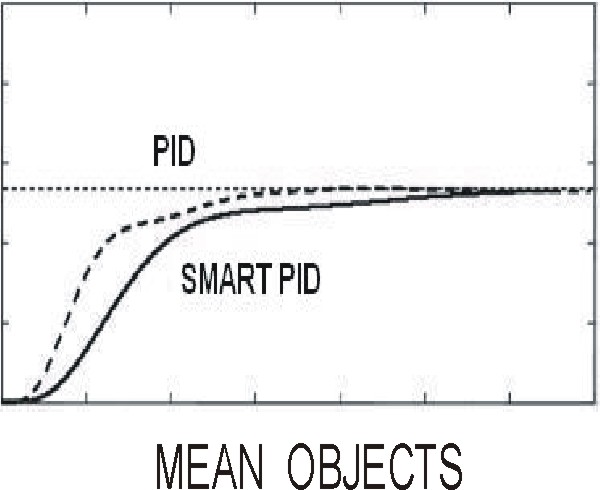

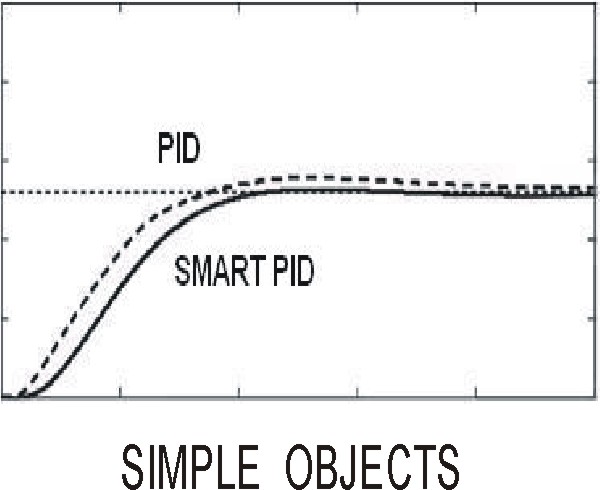

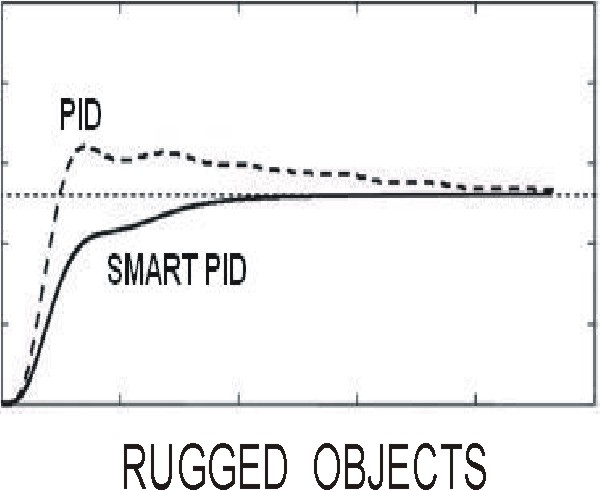

- Automatic selection of PID parameters (acc. to the new innovative SMART PID technology),
- self-acting and precise selection of PID settings,
- effective control algorithm,
- easy and simple solution for technical service,
- lack of overshoots or small overshoots for a large range of objects in the automatic process of PID parameter selection.
- Soft start function,
- Timer function,
- Alarm latch function (LATCH) applied in safety controllers,
- Measurement of heater current and heater burning control or short-circuit of the control element (e.g. SSR),
- IP65 protection grade,
- Password protection,
- External dimensions: 48 x 96 x 93 mm.
Controller - 4 outputs

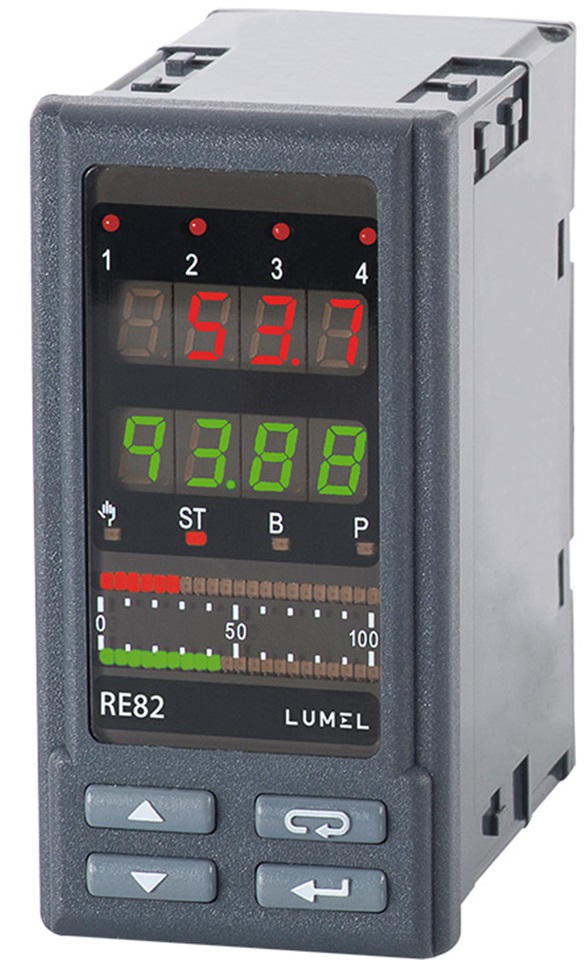

RE82
The RE82 controller is destined for the temperature control in plastics, food, dehydration industries and everywhere when the stabilization of temperature changes is necessary.
